Description

Main features:
• Basic reliable hospital bed
• Safe working load (SWL) 260 kg
• Manual emergency lowering of back section

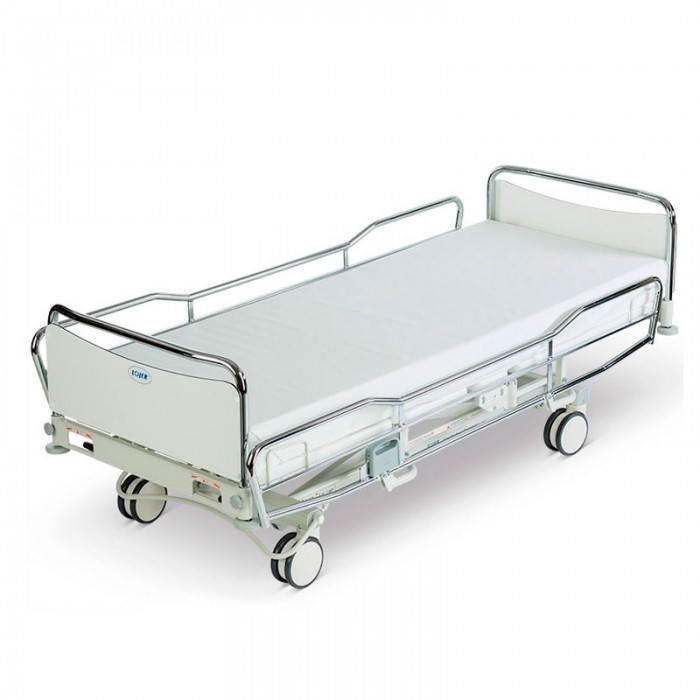

The quality ScanAfia XTK hospital bed is a basic safe choice for hospital wards. The bed has been designed for hospitals, healthcare centres and similar facilities, and it fulfils the requirements of the EN 60601-2-52:2010 standard for medical beds.
Although it can take loads up to 260 kg (SWL), the ScanAfia XTK hospital bed is still light and easy to manoeuvre, thanks to the optional choice of double castors. The design places emphasis on both ergonomic working and patient comfort and accessibility; its exceptionally low minimum height makes work easier for nurses and makes getting out of bed easier for patients. The back section slide mechanism also improves patient comfort.
The Range
ScanAfia XTK-280/290 2-part bed section (205 X 80/90 cm), with electrical height and back section adjustment.
ScanAfia XTK-480/490 4-part bed section (205 X 80/90 cm), with electrical height, back, thigh and calf section adjustment.
Technical standard features:
• Electrical height and back section adjustment with hand control (models: XTK-280 and XTK-290)
• Electrical height, back, thigh and calf section adjustment with hand control (models: XTK-480 and XTK-490)
• Epoxy-coated or chromium steel frame
• Epoxy-coated or chromium bed-end at head section, plate available in standard colours: white, blue, yellow, light green, birch-colored and beech-colored
• Back section slide
• Lowest height starting from 32 cm
• Ø125 mm central locking castors with directional wheel
• Brake lever at the foot-end (long metallic foot pedal) or individual brake pedals at the foot end
• Bumper rollers
• Mechanical CPR back section
• Integrated fixings for 2 lifting poles and IV stand
• Fixings in the base plate for restraining straps (holes)
• Safe 24V electrical system. Electrical components and connections earthed and splash-proof
• Breathable ABS plastic base
