Description

Main features:
• Ergonomic working position thanks to impressive height adjustment range
• High safe working load (SWL): 260 kg
• Easy to manoeuvre thanks to its twin castors (optional)

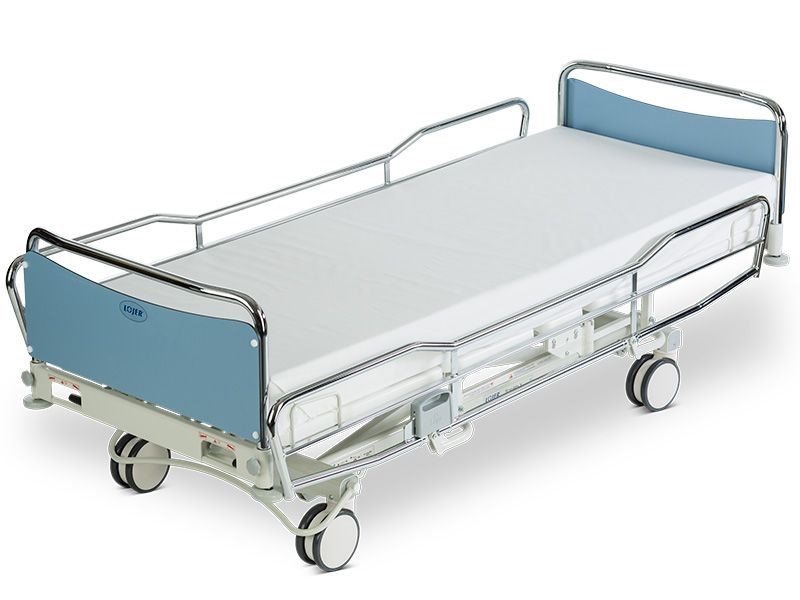

The quality ScanAfia XS hospital bed is the safe choice for hospital wards. The bed has been designed for use by healthcare professionals in hospitals, healthcare centres and similar facilities, and it fulfils the requirements of the new EN 60601-2-52:2010 standard for medical beds.
Although it can take loads up to 260 kg (SWL), the ScanAfia XS hospital bed is still light and easy to manoeuvre, thanks to the optional choice of double castors. The design places emphasis on both ergonomic working and patient comfort and accessibility; its exceptionally low minimum height makes work easier for nurses and makes getting out of bed easier for patients. The back section slide mechanism also improves patient comfort. The bed also features an extremely broad Trendelenburg / Anti-Trendelenburg adjustment range.
The Range
ScanAfia XS-280/290 2-part bed section (205 X 80/90 cm), with electrical height and back section adjustment.
ScanAfia XS-480/490 4-part bed section (205 X 80/90 cm), with electrical height, back, thigh and calf section adjustment.
Technical standard features:
• Safe working load (SWL) 260 kg
• Trendelenburg 12° / Anti-Trendelenburg 20° adjustment
• Electrical height and back section adjustment with hand control (with models S-280 and S-290)
• Electrical height, back, thigh and calf section adjustment with hand control (with models S-480 and S-490)
• Epoxy-coated or chromium steel frame
• Epoxy-coated or chromium bed-end at head section, plate available in standard colours: white, blue, yellow, light green, birch-colored and beech-colored
• Brake lever at the foot-end (long metallic foot pedal) or individual brake pedals at the foot-end
• Manual emergency lowering of back section
• Back section slide
• Lowest height starting from 32 cm
• Height adjustment going straight up reduces the need for space
• Ø125 central locking castors and direction wheel
• Fixings for restraining belt
• Bumper rollers
• Built-in place for lifting pole and two IV poles
