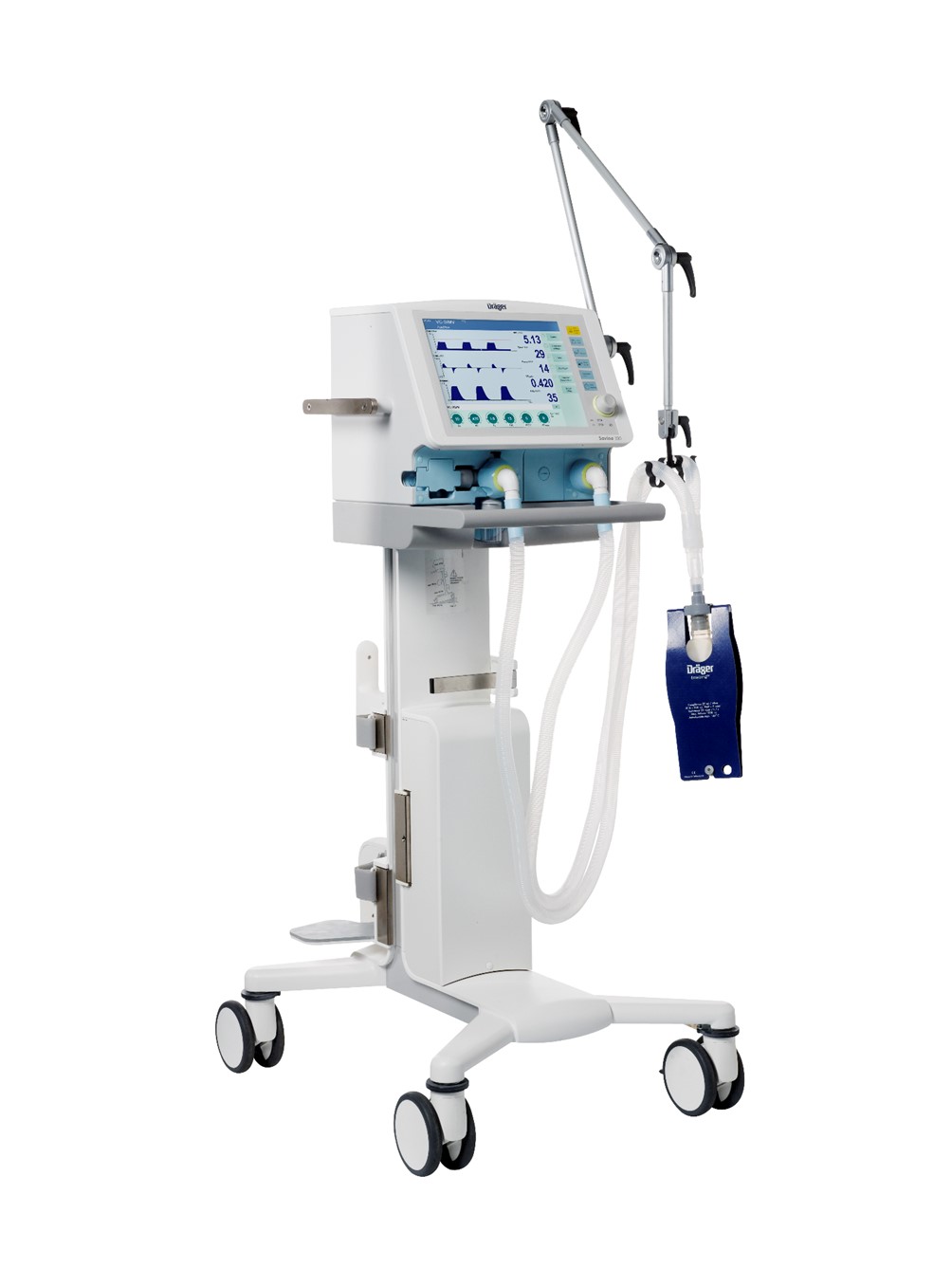

Description

High ventilation performance
• Wide range of ventilation modes
• Stress-free spontaneous breathing with excellent trigger response time thanks to the turbine
• Free breathing with AutoFlow in volume constant ventilation at a minimum pressure level
• Non-invasive ventilation (NIV) with a very quick response time to patient efforts – available in all modes
• No device change in case of altered ventilation therapy necessary: O2-therapy allows oxygen application with constant flow
• Extended graphic capabilities with loops, trends and logbook
Independent from gas and power supply
• Built-in-turbine with rapid response time and continuous high flow delivery of up to 250 l/min
• Five hours of independent ventilation due to built-in and external batteries
• Transport Supply Unit (TSU) can be quickly attached for ergonomic handling of gas cylinders
• Bed coupling for quick connection between ventilator and patient bed
• Low Pressure Oxygen (LPO) inlet for ventilation without central gas supply
Basic configuration:
• for ventilating adults and pediatric patients with a tidal volume of at least 50 mL
• for intensive care wards and recovery rooms
• new ergonomic design
• configurable 12″ touchscreen
• for simultaneous display of 3 realtime waveforms
Ventilation modes:
• VC-CMV / VC-AC: Volume Control – Continuous Mandatory Ventilation / Volume Control-Assist Control
• VC-SIMV: Volume Control – Synchronized Intermittent Mandatory Ventilation
• SPN-CPAP: Spontaneous – Continuous Positive Airway Pressure
Displayed measured values:
• FiO2, PEEP, peak pressure, plateau pressure, mean airway pressure
• total and spontaneous minute volume (BTPS)
• total and spontaneous respiratory rate
• expiratory tidal volume and leakage-compensated patient tidal volume (BTPS)
• ratio of inspiratory time to expiratory time (I:E)
• compliance and resistance
• realtime waveforms for flow, pressure, and volume
• tabular display of measured values
• intuitive alarms logbook for recording alarms, all user actions, and calibrations
• dialog-based check of operational readiness (device check and breathing circuit check)
• oxygenation program for endotracheal suctioning
• manually triggered inspiration and inspiration hold
• port for pneumatic nebulizer
• leakage compensation
• integrated breathing-gas compressor (high-performance turbine)
• internal battery for an operating time of approx. 45 minutes
• RS-232 communication interface
• delivered with 5 flow sensors und spare expiratory valve
Options
• Option LPO
• Option CO2
• Option PC-AC
• Option Special maneuvers
• Option O2 therapy
• Option NIV
• Option Monitoring Plus
• Option AutoFlow
• Option PC-BIPAP/ PC-SIMV+
• Option: Nurse Call
• Set external batteries (The external battery guarantees up to four additional hours of independent ventilation performance during patient transport).
